INDUSTRIAL SCALES Manufacturer Supplier and Exporters
Contech offers total weighing solution for all the Industrial segments with various options. The applications are Table Top Scales, Piece Counting Scales, Platform Scales, Floor Scales, Pallet Scales, Waterproof Scales, Flameproof Scales, etc.

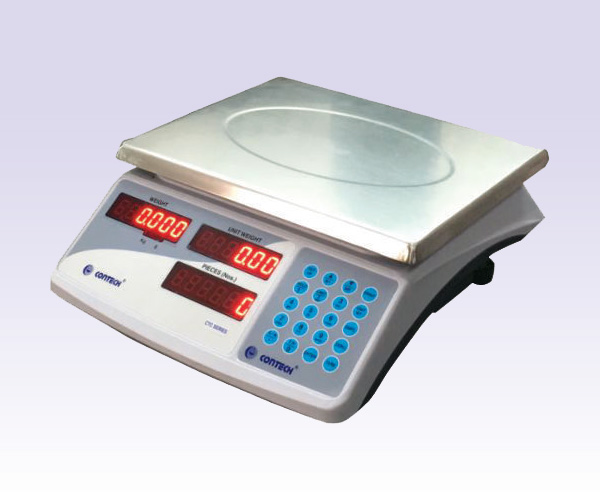

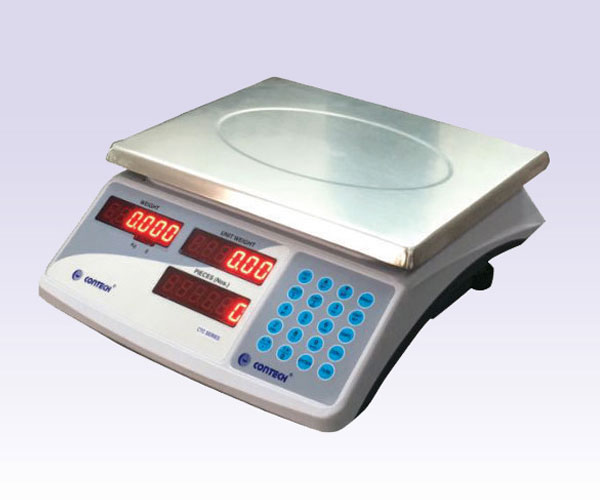

PIECE COUNTING SCALES - AVAILABLE IN TABLETOP (0.5 g - 35 kg) and Platform ( 2 g - 1 ton)
* 3 separate display to indicate weight, unit weight and quantity.
* Numeric keyboard for easy entry of unit weight/sample quantity.
* Automatic count improvement mode.
* Resettable set points for check counting.
* Comparator function with audio indication (buzzer).
* Accumulation and recalling of counts with date/time.
* Optional comparator with relay outputs.
* Print option with date/time, count and weight.
Specifications:
| Models | CTC-6001 | CTC-10002 | CTC-15005 | CTC-30K1 | CTP-35K5 |
|---|---|---|---|---|---|
| Capacity | 6kg | 10kg | 15kg | 30kg | 35kg |
| Readability | 0.1g | 0.2g | 0.5g | 1g | 5g |
| Repeatability(+/-) | 0.1g | 0.2g | 0.5g | 1g | 5g |
| Linearity (+/-) | 0.2g | 0.4g | 1g | 2g | 5g |
| Pan Size | 225mm x 300mm | 225mm x 300mm | 225mm x 300mm | 225mm x 300mm | 225mm x 300mm |
| Models | CP-75K5 | CP-100K10 | CP-200K20 | CP-300K20 | CP-500K50 | CP-1T100 |
|---|---|---|---|---|---|---|
| Capacity | 75kg | 100kg | 200kg | 300kg | 500kg | 1 Ton |
| Readability | 5g | 10g | 20g | 20g | 50g | 100g |
| Repeatability(+/-) | 5g | 10g | 20g | 20g | 50g | 100g |
| Linearity (+/-) | 10g | 20g | 40g | 40g | 100g | 200g |
| Pan Size | 400mm x 400mm | 450mm x 500mm | 600mm x 600mm | 600mm x 600mm | 750mm x 750mm | 1000mm x 1000mm |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
