LABORATORY BALANCES

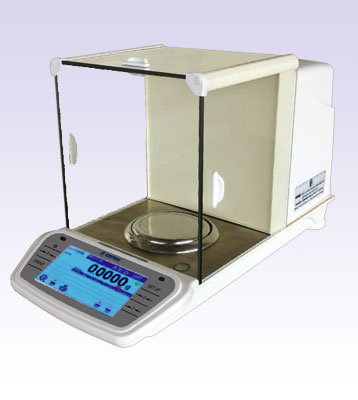

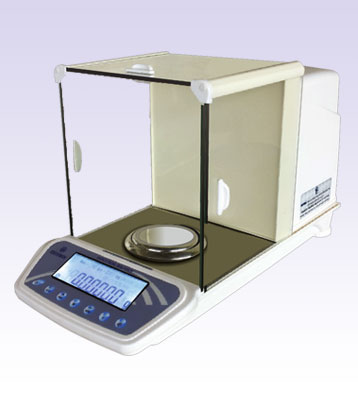

SEMI MICRO BALANCES (CAI Series) Manufacturers, Suppliers and Exporters

CONTECH Semi micro Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

SEMI MICRO BALANCES (CAI Series) 0.00001g to 60g

STANDARD FEATURES

Backlite LCD Display
Motorized internal calibration. (Standard)
Bi directional RS 232 interface
GSM function
Multiple Weighing Units
Percentage Weighing
Piece Counting
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points -- Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
External Calibration
Response Time:
User selectable - Slow / Normal /Fast.
Stability Band Width
Auto Zero Tracking
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Optional Features (Extra charges applicable)
* 5" Touch screen graphic display.
* 21CFR Part 11 compliance (Optional only with TFT display)
* RS 232 to USB interface converter.
* GLP compliance/RTC.
* Density determination kit.
* Weigh below hook for density determination.
* Yarn count with temperature compensation.
* Denier measurement for silk & synthetic yarn.
* Anti vibration table.
* Standard weights / weight box.


Semi Micro Balances with motorized internal calibration

MODELS CAI-35 CAI-65
CAPACITY 30g 60g
READABILITY 0.00001g 0.00001g
REPEATABILITY (+/-) 0.03mg 0.05mg
LINEARITY (+/-) 0.05mg 0.05mg
PAN SIZE 80mm 80mm

Specifications:

Taring Range : Up to full capacity
Response time : 3-5 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10~45 deg C
Dimension (mm) : 470(L) x 230(W) x 285(H)

* All Specifications and designs are subject to change for improvement.

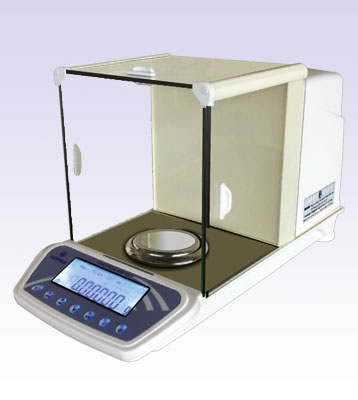

ANALYTICAL BALANCES (CAS & CAI Series)

ANALYTICAL BALANCES (CAS & CAI Series) Manufacturers, Suppliers and Exporters

ANALYTICAL BALANCES (CAS & CAI Series) 0.0001g to 300g

CONTECH Analytical Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

STANDARD FEATURES

Backlite LCD Display
Bi directional RS 232 interface
GSM function
Multiple Weighing Units
Percentage Weighing
Piece Counting
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points - Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
External Calibration
Response Time:
User selectable - Slow / Normal /Fast.
Stability Band Width
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Optional Features (Extra charges applicable)
* 5" Touch screen graphic display.
* 21CFR Part 11 compliance (Optional only with TFT display)
* Motorized internal calibration.
* RS 232 to USB interface converter.
* GLP compliance/RTC.
* Density determination kit.
* Weigh below hook for density determination.
* Yarn count with temperature compensation.
* Denier measurement for silk & synthetic yarn.
* Anti vibration table.
* Standard weights / weight box.

Specifications:
Taring Range : Up to full capacity
Response time : 2-3 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10~45 deg C
Dimension (mm) : 470(L) x 230(W) x 285(H)

* All Specifications and designs are subject to change for improvement.


Analytical Balances without motorized internal calibration

MODELS CAS-54 CAS-84 CAS-164 CAS-234 CAS-304
CAPACITY 50g 80g 160g 230g 300g
READABILITY 0.0001g 0.0001g 0.0001g 0.0001g 0.0001g
REPEATABILITY (+/-) 0.1mg 0.1mg 0.2mg 0.2mg 0.2mg
LINEARITY (+/-) 0.2mg 0.2mg 0.4mg 0.4mg 0.4mg
PAN SIZE 100mm 100mm 100mm 100mm 100mm

Analytical Balances with motorized internal calibration

MODELS CAI-54 CAI-84 CAI-164 CAI-234 CAI-304
CAPACITY 50g 80g 160g 230g 300g
READABILITY 0.0001g 0.0001g 0.0001g 0.0001g 0.0001g
REPEATABILITY (+/-) 0.1mg 0.1mg 0.2mg 0.2mg 0.2mg
LINEARITY (+/-) 0.2mg 0.2mg 0.4mg 0.4mg 0.4mg
PAN SIZE 100mm 100mm 100mm 100mm 100mm

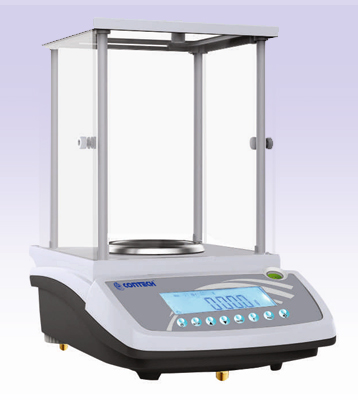

HIGH PRECISION BALANCES (CAH Series)

HIGH PRECISION BALANCES (CAH Series) Manufacturers, Suppliers and Exporters

HIGH PRECISION BALANCES (CAH Series) 0.001g to 1000g

STANDARD FEATURES

Backlite LCD Display
Bi directional RS 232 interface
GSM function
Multiple Weighing Units
Percentage Weighing
Piece Counting
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points - Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
External Calibration
Response Time:
User selectable - Slow / Normal /Fast.
Stability Band Width
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.
* Removable breeze shield with 2 side and top glass sliding door

Optional Features (Extra charges applicable)
* 5" Touch screen graphic display.
* 21CFR Part 11 compliance (Optional only with TFT display)
* Motorized internal calibration.
* RS 232 to USB interface converter.
* GLP compliance/RTC.
* Density determination kit.
* Weigh below hook for density determination.
* Yarn count with temperature compensation.
* Denier measurement for silk & synthetic yarn.
* Standard weights / weight box.

Specifications:
Taring Range : Up to full capacity
Response time : 2-3 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10~45 deg C
Dimension (mm) :
Standard Model - 310(L) x 210(W) x 330(H)
internal Calibration/Touch Screen model - 345(L) x 220(W) x 340(H)

* All Specifications and designs are subject to change for improvement.

High Precision Balances without motorized internal calibration

MODELS CAH-53 CAH-123 CAH-223 CAH-323 CAH-413 CAH-503
CAPACITY 50g 120g 220g 320g 410g 500g
READABILITY 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g
REPEATABILITY (+/-) 0.001g 0.001g 0.001g 0.001g 0.001g 0.002g
LINEARITY (+/-) 0.001mg 0.001mg 0.002mg 0.002mg 0.002mg 0.002mg
PAN SIZE 100mm 100mm 100mm 100mm 100mm 100mm

High Precision Balances without motorized internal calibration

MODELS CAH-603 CAH-803 CAH-1003
CAPACITY 600g 800g 1000g
READABILITY 0.001g 0.001g 0.001g
REPEATABILITY (+/-) 0.002mg 0.002mg 0.002mg
LINEARITY (+/-) 0.003mg 0.004mg 0.004mg
PAN SIZE 125mm 125mm 125mm

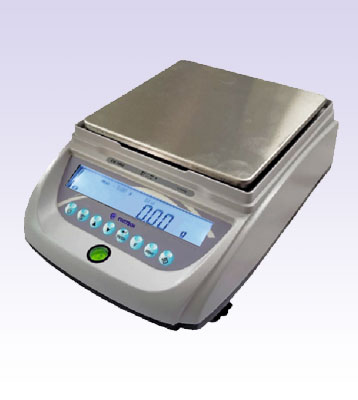

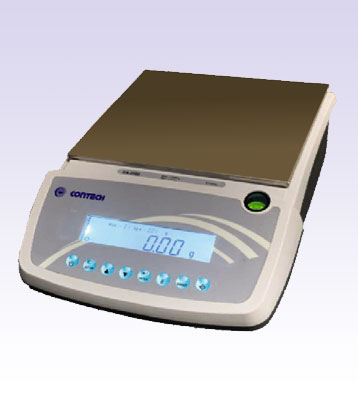

PRECISION BALANCES (CA Series)

PRECISION BALANCES (CA Series) Manufacturers, Suppliers and Exporters

PRECISION BALANCES (CA Series) 0.01g to 1500g

Contech Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters

STANDARD FEATURES

Backlite LCD Display
Bi directional RS 232 interface
GSM function
Multiple Weighing Units
Percentage Weighing
Piece Counting
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points - Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
External Calibration
Response Time:
User selectable - Slow / Normal /Fast.
Stability Band Width
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Optional Features (Extra charges applicable)
* VFD display.
* RS 232 to USB interface converter.
* GLP compliance/RTC.
* Weigh below hook for density determination with software.
* Breeze shield.
* Standard weights / weight box.


Precision Balances with pan size 165 x 175 in mm

MODELS CA-1502
CAPACITY 1500g
READABILITY 0.01g
REPEATABILITY (+/-) 0.01g
LINEARITY (+/-) 0.02g
PAN SIZE 165x175 mm

Specifications:
Taring Range : Up to full capacity
Response time : 2-3 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10~45 deg C
Dimension (mm) : 280(L) x 210(W) x 100(H)

* All Specifications and designs are subject to change for improvement.

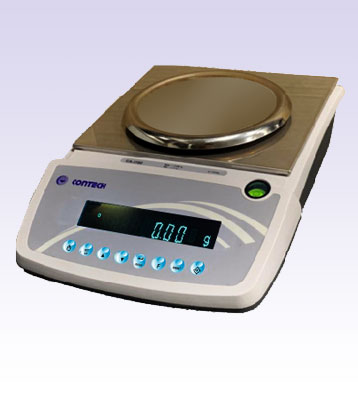

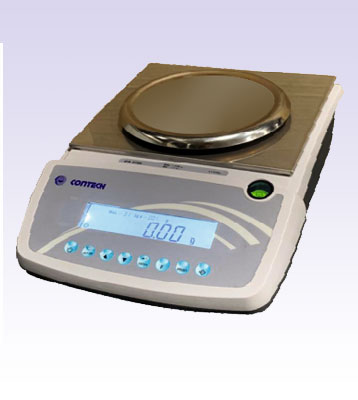

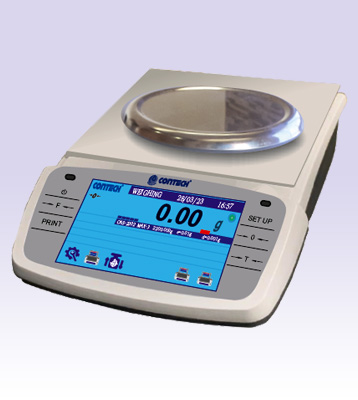

PRECISION BALANCES (CAH Series) 0.01g to 5000g

PRECISION BALANCES (CAH Series)

PRECISION BALANCES (CAH Series) 0.01g to 5000g

ContechPrecision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

STANDARD FEATURES

Display
Customized, large, attractive LCD with multiparameter display illuminated by white backlite.
Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600.Various interface formats adopting this Balance in a setup to replace any other leading international brand Balance. Can be configured for an USB interface using optional RS 232 to USB converter .
GSM function
GSM function for paper & cloth quality checking.
Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
Percentage Weighing
Display of Reference weight, sample weight, % of sample with respect to reference weight
Piece Counting
Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points - Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
0,1,2,3 modes for various formats.Pause in case data storage capacity in a Printer is less.
External Calibration
Using preset weights. Known weights can be corrected to + 15 counts.
Response Time:
User selectable - Slow / Normal /Fast.
Stability Band Width
Stability indicator appears on display with counts variation + 1, + 2, +3, +4.
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Optional Features (Extra charges applicable)
* 5" Touch screen graphic display.
* 21CFR Part 11 compliance (Optional only with TFT display)
* Motorized internal calibration.
* RS 232 to USB interface converter.
* GLP compliance/RTC.
* Weigh below hook for density determination.
* Vacuum fluorescent display (VFD).
* Breeze shield.
* Standard weights / weight box.

Specifications:
Taring Range : Up to full capacity
Response time : 2-3 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10~45 deg C
Dimension (mm) : 315(L) x 220(W) x 115(H)

* All Specifications and designs are subject to change for improvement.


High Precision Balances without motorized internal calibration

MODELS CAH-2202 CAH-3102 CAH-4102 CAH-5002
CAPACITY 2200g 3100g 4100g 5000g
READABILITY 0.01g 0.01g 0.01g 0.01g
REPEATABILITY (+/-) 0.02g 0.02g 0.02g 0.02g
LINEARITY (+/-) 0.02mg 0.02mg 0.03mg 0.03mg
PAN SIZE 150mm 150mm 150mm 150mm

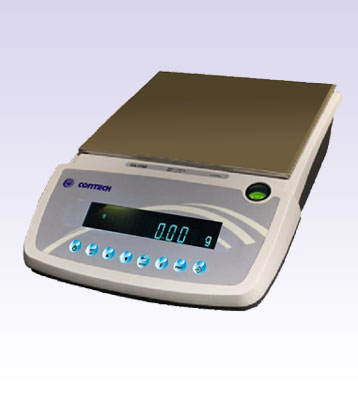

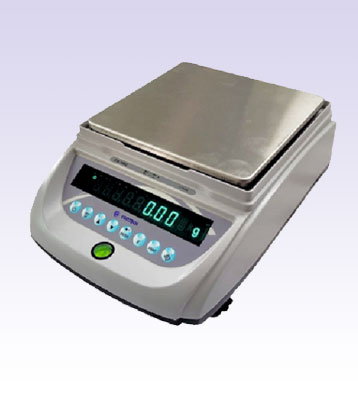

PRECISION BALANCES (CA Series) 0.01g to 5000g

PRECISION BALANCES (CA Series)

PRECISION BALANCES (CA Series) 0.01g to 5000g

Contech Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters

STANDARD FEATURES

Display
Customized, large, attractive LCD with multiparameter Display illuminated by white backlite.
Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading international brand Balance. Can be configured for an USB interface using optional RS 232 to USB converter.
GSM function
GSM function for paper & cloth quality checking.
Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
Percentage Weighing
Display of Reference weight, sample weight,% of sample with respect to reference weight
Piece Counting
Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points - Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
0,1,2,3 modes for various formats.Pause in case data storage capacity in a Printer is less.
External Calibration
Using preset weights. Known weights can be corrected to + 15 counts.
Response Time:
User selectable - Slow / Normal /Fast.
Stability Band Width
Stability indicator appears on display with counts variation + 1, + 2, +3, + 4.
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.


Optional Features (Extra charges applicable)
* RS 232 to USB interface converter.
* ISO GLP compliance/RTC.
* Weigh below hook for density determination.
* Vacuum fluorescent display (VFD).
* Breeze shield.
* Standard weights / weight box.

Specifications:
Taring Range : Up to full capacity
Response time : 2-3 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10~45 deg C
Dimension (mm) : 315(L) x 220 (W) x 110(H)

Precision Balances with pan size 165 x 175 in mm

MODELS CA-2202 CA-3102 CA-4102 CA-5002
CAPACITY 2200g 3100g 4100g 5000g
READABILITY 0.01g 0.01g 0.01g 0.01g
REPEATABILITY (+/-) 0.02g 0.02g 0.02g 0.02g
LINEARITY (+/-) 0.02mg 0.02g 0.03g 0.03g
PAN SIZE 165x175 mm 165x175 mm 165x175 mm 165x175 mm

* All Specifications and designs are subject to change for improvement.

INDUSTRIAL PRECISION BALANCES ( 0.1g to 10 Kg )

Backlite LCD Display
Customized, large, attractive LCD with multiparameter display illuminated by white backlite.
Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading international brand Balance.Can be configured for an USB interface using optional RS 232 to USB converter.
GSM function
GSM function for paper & cloth quality checking.
Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
Percentage Weighing
Display of Reference weight, sample weight, % of sample with respect to reference weight
Piece Counting
Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points – Indication when the sample weight is between the lower & upper limits..
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
0,1,2,3 modes for various formats. Pause in case data storage capacity in a Printer is less.
External Calibration
Using preset weights.Known weights can be corrected to + 15 counts.
Response Time:
User selectable – Slow / Normal /Fast.
Stability Band Width
Stability indicator appears on display with counts variation + 1, + 2, +3, + 4.
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Specifications:

MODELS CBI-6001 CBI-8001
CAPACITY 6000g 8000g
READABILITY 0.1g 0.1g
REPEATABILITY (+/-) 0.2 g 0.2mg
LINEARITY (+/-) 0.3 g 0.3mg
PAN SIZE 210x260 mm 210x260 mm

Specifications:
Taring Range : Up to full capacity
Response time : 3-5 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

OPTIONAL ACCESSORIES

DENSITY BALANCES ( 0.1 mg - 10 kg )

* Density Determination Kit is available in 2 types one to be mounted on the pan and the other type is with attachment for weigh below the balance. Density Determination Kit consists density weighing pan assembly, stainless steel base for beaker, glass beaker, optional sinker for testing materials having density less than water and software (program) for density determination.
* Facility for programming density of liquid (other than water) and temperature of water.
* Incase of multiple samples, storage of all the sample weights in air first and then in water, viewing of density of individual samples one by one on the display.
* Determination of density of liquid samples (Optional).
* Determination of air release value for oil samples (Optional).

Range :
0.1 mg - 300g
1mg - 1000g

FLAMEPROOF BALANCES ( 0.1 mg - 5 kg )

Flameproof cum weather proof enclosure with glass window, push button, rotary switch in cast aluminum construction in compliance with requirements in respect of flameproof ness and temperature class suitable for use in Zone 1 & Zone 2 and gas groups IIA & IIB atmospheres. Certified by Central Institute of Mining & Fuel Research, Govt. of India.

Range :
0.1 mg - 300g
1mg - 1000g
0.01g – 3kg
0.1g – 5kg
